Medium and high voltage electric motors are used in all industries where heavy loads are moved or where tasks are carried out in connection with particularly complex applications. They are predominantly utilized in a wide range of applications across all industries, including oil and gas, power generation, maritime, pulp and paper, cement, mining, metal, and water treatment. Medium voltage motors cover motor sizes from 315 to 630, with power ratings ranging from 150 to 3000 kW, manufactured for general industrial use.

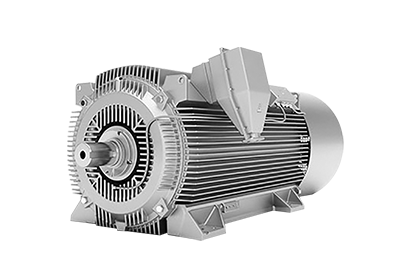

Type: Squirrel Cage / Cast Iron Body
Enclosure: Totally Enclosed Fan Cooled (TEFC) - (TEFV) - (TEAAC)
Voltage Range: 1,000 – 11,000 V
Power Range: 150 – 3000 kW
Frame Size: 315 - 630 (IEC)
Mounting Type: IMB3-IMV1-IMV3
Operating Mode: S1 Standard, S1-8 Optional
Protection Class: IP 55
Insulation Class: F (155° C)
Temperature Rise Class: Class B (80K)
Number of Poles: 2 – 12
Cooling Method: IC411-IC416-IC611
Temperature Sensors: PT100 in bearings and windings
Thermistors: Included
Lubrication Nipples: Included
Starting Method: Direct On-Line (DOL), Variable Frequency Drive (VFD), Soft Starter
Cable Box: 180-degree reversible (left-right)
Painting: Standard RAL 7031, other colors optional
Protection: Up to IP56
Bearings: Standard bearings, reinforced design for radial forces, optional bearings
Rotation: CW (Clockwise) / CCW (Counterclockwise)
Frequency: 50-60 Hz
